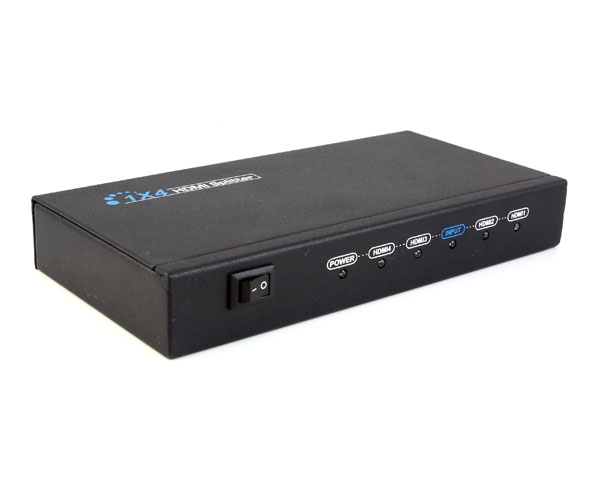

LKV314 1x4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc.

Features

• Input Video Signal   :    0.5 -1.0 volts p-p
• Input DDC Signal   :    5 volts p-p (TTL)
• Max Single Link Range   :    1920X1080, 1080P
• HDMI Resolutions   :    480i/480p/576i/576p/720p/1080i/1080P
• DVI Resolutions   :    480i/480p/576i/576p/720p/1080i/1080P
• HD Audio format   :    LPCM,Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master Audio
• HD Video Format   :    Deep Color
• HDMI Version   :    HDMI 1.3
• Bandwidth   :    Up to 225MHz
• EIDI Duration   :    6 seconds
• Power supply   :    DC 5V/1A

Interface Specification

1. Power switch
2. Power LED
3. HDMI Output LED
4. HDMI Input LED
5. HDMI Output
6. HDMI Input
7. Power Supply

FAQ

1. The splitter does not appear to be functioning.

Firstly, check if the LED lights, the power supply is connected and the power switch is turned on. Secondly, make sure all cables are well connected, and are in good condition. Thirdly, make sure the length of the cables is within the MAX supported length of this splitter. Lastly, please try to connect the input device to the display directly to see if it display normally.
2. The LED does not light.

Make sure you use the accessory power supply of the splitter. Power supply connected with voltage higher than 5V may damage the splitter.
3. If the MAX. resolutions of the four displays are not the same, what resolution will be output?

The splitter will automatically detect the MAX. supported resolution of each eight displays and output the lowest one.
