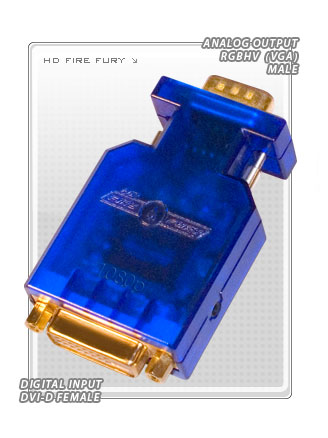

Plug and Play High Definition Screen Converter

Transform your TV viewing to the very latest HD digital age with true High Definition
The Fire Fury is the ultimate upgrade to your display and a real revolution in picture quality
and viewing experience.

HD Fire Fury will display a true high definition picture in full 720p/1080p resolution on any technically able plasma,lcd tv,pc monitor and projector.

No need to upgrade your existing display to enjoy the full benefits of high definition video
transform your display to hd today.

Plug and Play HDfury and enjoy full HD from:

Sky HD / Playstation 3 / XBOX 360 / Blue - Ray player / HD - DVD player or any other HD system

HDfirefury RGB 1080p Specs & Features

With all the non HDMI compatible screens in the market we have designed
HDfirefury. HDfirefury module will transform any "technically able" ANALOG display into a DIGITAL display performing a perfect visual HD&Full HD fury @ 720p/1080p from any HDMI/HDCP sources such as PS3, X360 Elite, HD-DVD & Blu-Ray player, SAT & Cable HDTV setbox, HDMI graphic card, and more. DVI/HDMI(HDCP) input/convertor module for RGB display (so-called "HDfirefury 1080prgb"). HDfirefury can be listed as HDMI to RGB converter or HDMI to VGA converter (HDMIvga.com)

Specifications:

a.. DVI-D 24p Female Port Input (100% digital).
b.. A HDMI -> DVI-D cable can be use to connect to an HDMI source.
c.. RGB 4:4:4 (8 bits) digital input (every HDMI source MUST be RGB 4:4:4 compatible).
d.. Compatible with non-HDCP or HDCP sources.
e.. Compatible with any RGB Display
f.. Directly connect to VGA input.
g.. Easy to install within a minute. (Plug&Play)
h.. 10 bits 175MHz triple video DAC - Inter-DAC : 2%
i.. RGB-H/V Male Port D-SUB 15 Output video analog signals (0,7Vpp over 75 ohms impedance)
j.. Ultra short Analog links (<1 cm) on the HDfirefury RGB 1080p for optimal quality.
k.. DVI video bandwidth in VGA/RVB outputs: 25-165MHz
l.. DVI Data Rate - Bandwidth 1.65 Gbps (Single link)
m.. Maximum resolutions: UWXGA (1920x1200) at 60Hz or SXGA (1280x1024) at 85Hz Computer compatible (PC, Mac)
n.. HDTV ready (480p/576p/720p/1080i/1080p48/50/60 compatible)
o.. DVI1.0 compliant / HDMI interoperable and HDCP ready
p.. HD-DVD and Blue Ray Disc players compatible
q.. Playstation3 and X360 Elite compatible
r.. SAT and CABLE setbox for HDTV channels compatible
s.. HDCP compatible with embedded keys loaded.
t.. Energy management : DVI et VESA DPMS compatible.
u.. Ultra low power consumption in Standby (3,5mA)
v.. Maximum power : 0.4A under 5V (at 165MHz pixel clock)
w.. On-board DC/DC converter (5V) with extra-low EMI signature
x.. Power +5V from DVI/HDMI
y.. Blue LED to display active digital link.
z.. Safe cost solution - Single IC solution + external eeprom
aa.. Small size : 75x56mm black cabinet
ab.. Installation: the RGB 1080p module is DIRECTLY screwed to the back of the display (where VGA SUB-D plugs stand).
ac.. Shortest RGB analog video link as possible
ad.. HDCP rules compliant: no end-user access to decrypted analog video. Once screwed, this module becomes "a part of the display itself".
ae.. Professional factory made (mass-production) using pick/place and reflow/wave solder pro. equipment.
af.. Gold Plated connectors, tracks and material
ag.. HDfirefury have a +5v input (ONLY needed if your HDMI cable is over 10 meters!)
ah.. EDID detective feature: EDID eprom can be reprogrammed by your computer through it's Graphic Card! (This feature is reserved to professionals)
ai.. Warranty: One year warranty

Enhance your display compatibility (lifetime) and value (now compatible with new equipment)

HDfirefury maximum output limit is above the 1080p resolution which makes this device absolutely hassle free to handle 1080p video data flow continuously during years!

HDfirefury HDMI/DVI-D to VGA signal converter delivers clean video at the highest resolution up to 1920x1080P. It's an in-line adapter easy to install, connect to any VGA display and run a HDMI/DVI cable to your source. The DDA delivers native resolution video with the internal 1.65Gbps bandwidth, ideal for both PC and AV sources.

Home Cinema Addicts:

HDfirefury is also compatible with the 3 Tubes projectors from Barco such as BD701, BG701, Ciné 7, BG800(s), BG801, BD808(s), BG808(s), BG1208(s)(/2), BG1209(s)(/2), Cine 8 (Onyx), Zenith Pro 1200, Cine 9, Cinemax.

It can be hooked on Port 3 (With a VGA female cable -> SUBD9P) or Port 5 (with a VGA female -> 5xBNC cable)

HDfirefury is compatible with the 3 tubes projectors from NEC (All models) with a VGA female -> 5xBNC cable

HDfirefury is compatible with the "Matrix" Projector (not HDCP) such as LCD, DLP, SXRD, D-ILA through VGA 15pins
