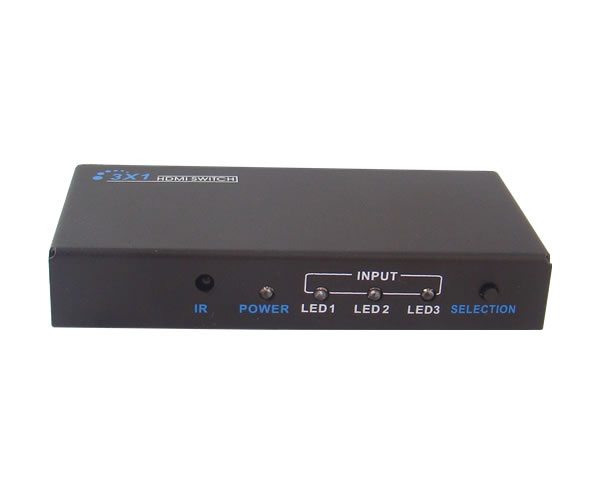

Share your HDMI sources with a single HD monitor. This 3×1 HDMI Switch allows you to switch between 3 HDMI sources (set top box, DVD players, video game stations, etc.) and your HD monitor easily. This switch passes both digital and audio signals through the HDMI ports! It is powered from HDMI cable and ensures high-quality signal transmission as well.

Features

• Input Video Signal   :    0.5 -1.0 volts p-p
• Input DDC Signal   :    5 volts p-p (TTL)
• Max Single Link Range   :    1920 x 1080
• HDMI Resolutions   :    480i/576i/480p/576p/720p/1080i/1080P
• DVI Resolutions   :    480p/576i/576p/720p/1080i/1080p
• XUVGA   :    Up to 1920×1200
• HD Audio format   :    LPCM, Dolby-AC3, DTS7.1, Dolby True HD/DTS-HD master Audio
• HD Video Format   :    Deep Color
• HDMI Version   :    HDMI 1.3, HDCP 1.2
• Bandwidth   :    Up to 225MHz
• Power supply   :    DC 5V@1A
• Max. Power   :    1.0W
• TMDS Voltage   :    1Vp-p
• Resistance   :    75Ω
• Max. Transmission length
  • 10 meters (powered from HDMI cable)
  • 15 meters (powered from power supply)

Interface Specification

1. Connect HDMI Sources
2. Connect HDMI Display
3. Connect DC 5V@1A power supply (optional)
4. IR Receiver
5. Power LED
6. LED of Input Port
7. Input switch button
